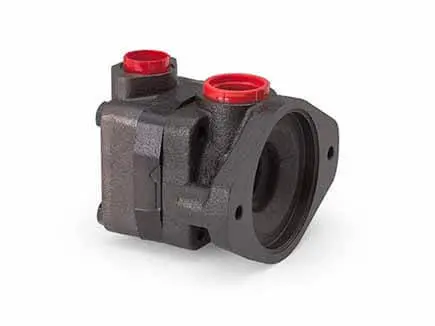

Vickers Replacement Piston Pump TDV20
Product Description
100% made in the USA, these replacement hydraulic piston pumps offer an outstanding blend of USA manufacturing quality and value. These pumps are 100% “plug-and-play” interchangeable with OEM pumps and are rated at or above Vickers quality standards for flow, pressure and efficiency.
Description
Displacement per revolution 1.19 in3/r (Ring Size 6), 1.39 in3/r (Ring Size 7), 1.62 in3/r (Ring Size 8), 1.81 in3/r (Ring Size 9), 2.22 in3/r (Ring Size 11), 2.38 in3/r (Ring Size 12), & 2.59 in3/r (Ring Size 13)
Maximum Speed 3400 r/min (Ring Size 6), 3000 r/min (Ring Size 7), 2800 r/min (Ring Size 8), 2800 r/min (Ring Size 9), 2500 r/min (Ring Size 11), 2400 r/min (Ring Size 12), & 2400 r/min (Ring Size 13)
Maximum Pressure 2500 PSI (Ring Sizes 6-11) & 2200 PSI (Ring Sizes 12-13)
Typical Delivery 3.6 GPM (Ring Size 1), 7.3 GPM (Ring Size 2), 9.4 GPM (Ring Size 3), 10.9 GPM (Ring Size 4), 12.8 GPM (Ring Size 5), 14.6 GPM (Ring Size 6), & 16 GPM (Ring Size 7)
Typical Input Power 29 HP (Ring Size 6), 29.5 HP (Ring Size 7), 32.5 HP (Ring Size 8), 35.5 HP (Ring Size 9), 37.5 HP (Ring Size 11), 36 HP (Ring Size 12), & 39 HP (Ring Size 13)
Weight Up to 18 lbs
*Performance at oil temperature of 49 degrees Celsius, viscosity at 32 cSt at 38 degrees Celsius, 1200 r/min, and 0 PSI inlet pressure. Specifications also vary based on ring size.
