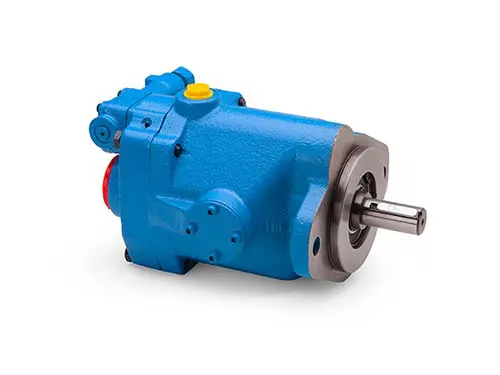

Vickers Replacement Piston Pump PVB45
Product Description
100% made in the USA, these replacement hydraulic piston pumps offer an outstanding blend of USA manufacturing quality and value. These pumps are 100% “plug-and-play” interchangeable with OEM pumps and are rated at or above Vickers quality standards for flow, pressure and efficiency.
Description
Displacement per revolution 5.76 in3
Max Operating Pressure Up to 3000 PSI
Displacement Control Options 250 to 3000 PSI (with C compensator) or 150 to 1500 PSI (With CM compensator)
Drive Speed Up to 3,600 RPM
Maximum Outlet Pressure 3000 PSI (With anti-wear hydraulic oil), 2000 PSI (With water glycol), and 2000 PSI (With a 40-to-60 water-in-oil emulsion)
Maximum Inlet Pressure 15 PSI
Maximum Output Torque 1,408 lbf inch
Weight 211 lbs (With foot brackets)
Mounting Type Flange or Foot
Installation Recommendation Horizontal Mounting
